Spider Glass
Spider Glass Fitting
This SPIDER GLASS is a modern solution for exterior bolted glass assemblies, which secures the glazing to a support structure by means of point-fixings The high-grade stainless steel fixings are designed to absorb all static and dynamic loads (i.e. the dead weight of the glass, wind loading, snow loads and differential expansion due to temperature difference) and distribute them to the support structure.
Intermediate elements which are inserted between the bolt and the glass ensure:
- uniform transmission of stresses whilst avoiding local stresses;
- a watertight facade.
To begin with, the system uses SECUREPOINT, a specially toughened glass. Additionally, SPIDER GLASS now meets ISO 16933 standards. Therefore, it qualifies as blast-enhanced glass under the “Glass in Building – Explosion Resistant Security Glazing” classification.
Moreover, SPIDER GLASS offers a versatile range. For example, in monolithic glass setups, SPIDER GLASS includes articulated bolt-fixings. These bolts directly secure to a support structure. As a result, they keep the glazing firmly in position. Furthermore, the bolts allow movement in all directions. Each fitting, in fact, goes into a countersunk hole. Consequently, it sits flush with the outer glass surface.
Likewise, you can choose laminated glass such as STADIP SPIDER GLASS. When combined with heat-strengthened glass, it adds more safety. This combination maintains glass integrity during accidental breakage. On the other hand, double-glazed SPIDER GLASS includes a SECUREPOINT outer layer. Inside, you can use either a toughened or laminated glass. Besides, you may add any COOL-LITE or PLANITHERM product. Ultimately, SPIDER GLASS works with most SAINT-GOBAIN GLASS options, offering unmatched flexibility and performance.
Light Transmittance
Firstly, the SPIDER GLASS system uses SECUREPOINT, a specially toughened glass that adds strength and durability. Additionally, this system meets ISO 16933 standards, which confirms its performance under explosion-resistant tests. As a result, SPIDER GLASS qualifies as a blast-enhanced solution for buildings that demand high security. Therefore, you can rely on it for critical structural applications.
Moreover, SPIDER GLASS offers a wide range of solutions. For instance, in monolithic applications, it features articulated bolt-fixings. These bolts, when installed, secure directly to the support structure. Consequently, the glazing stays firmly in position. At the same time, these bolts allow multidirectional movement, supporting the flexibility of the glass. Each fitting, in fact, inserts into a countersunk hole and sits flush with the glass surface. Thus, the overall design remains seamless and visually clean.
In addition, you can opt for laminated glass options like STADIP SPIDER GLASS, which combines with heat-strengthened layers to offer extra safety. In the event of breakage, the structure continues to hold. Alternatively, you can choose double-glazed SPIDER GLASS, which includes a SECUREPOINT outer layer and a toughened or laminated inner glass. Furthermore, you can integrate COOL-LITE or PLANITHERM glass for energy performance. Ultimately, SPIDER GLASS supports nearly all SAINT-GOBAIN GLASS products, making it one of the most flexible and secure glazing systems available.
- PLANICLEAR clear float glass or DIAMANT extra-clear glass.
- PARSOL body-tinted glass.
- COOL-LITE CLASSIC, COOL-LITE ST or COOL-LITE K or SK*, ANTELIO solar control glass.
- PLANITHERM low-emissivity glass.
- EMALIT EVOLUTION* enameled glass.
It is possible to use BIO CLEAN self-cleaning glass depending on the type of sealants used. * If these products are used, they are subject to specific requirements. The spectrophotometric performance of SPIDERGLASS corresponds to that of the glazing which constitutes the system.
Unobtrusive, flush appearance

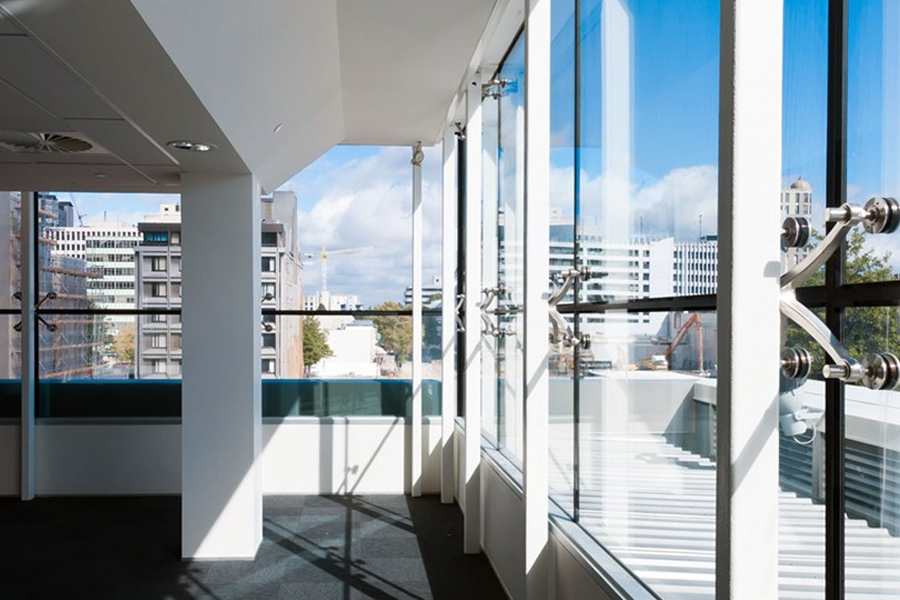

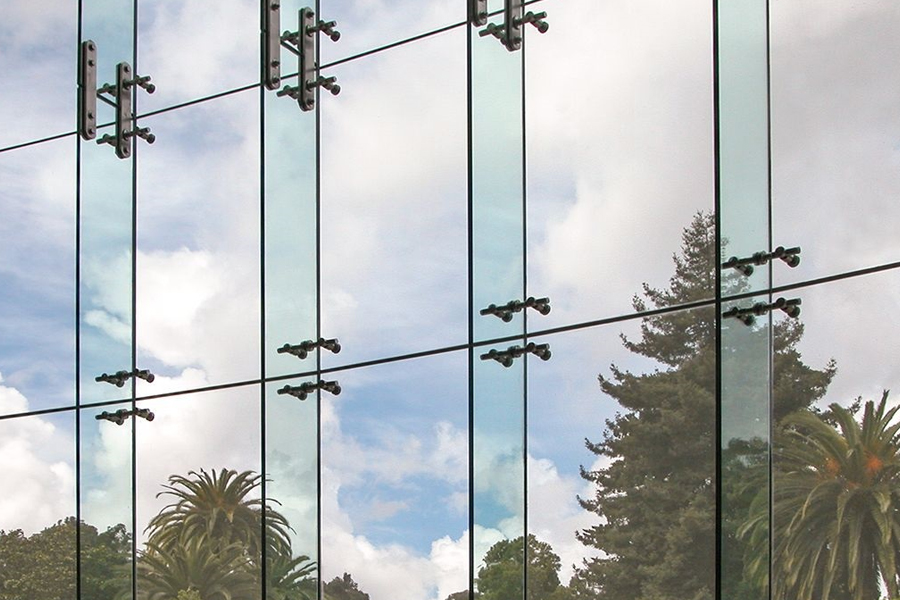

SPIDER GLASS fittings contribute to the creation of all-glass assemblies and innovative projects. With SPIDERGLASS, the glass is not set in frames like traditional constructions, but held in place by point-fixings, thus creating innovative aesthetic all-glass facades.
Maximum transparency
All-glass structures can be created, ensuring interiors are generously provided with natural light. When refurbishing older buildings, the clarity of the glass allows the original structure to be exposed in its true form.
Installation & Fixing
Design principles
The size of the supporting structure must be adequate to take the weight of the glass and the wind load conditions so it does not put any strain on the glass itself. The glass needs to withstand the wind loads and imposed dead loads. There must be a gap between the two panes of glass to avoid transmitting stresses and to allow space for the mastic weather seal. Various types of support structures are possible. Seal: Panes must be sealed using a silicone mastic applied to an extruded silicone seal. (e.g. HYDROSTOP seal developed by SAINT-GOBAIN GLASS).
